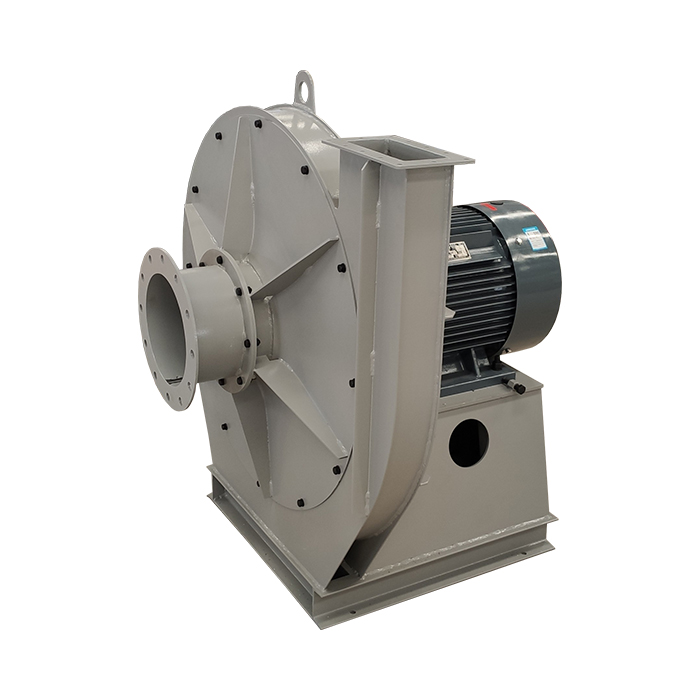

DE26 high pressure centrifugal fan
Structural features: single into the wind, strong front brake impeller, are high-pressure fan, removable structure, a variety of angle swap, transmission for the A/C/D-type triple structure
Machine range: NO.4-16 # Total 13 kinds of machine number.
Air volume range: 2198-123090 m3/h
Full pressure range: 2763-16250 pa
Suitable for general use: forged and high pressure forced ventilation, and widely used in conveying materials.
Use of the environment: no air when the air transport, no spontaneous combustion, non-sticky material, the medium temperature is generally not more than 80 ℃ (beyond the need for special design), the media contained in the particles is not greater than 150mg/m3. (Can be customized custom explosion-proof, anti-corrosion, high temperature structure)
