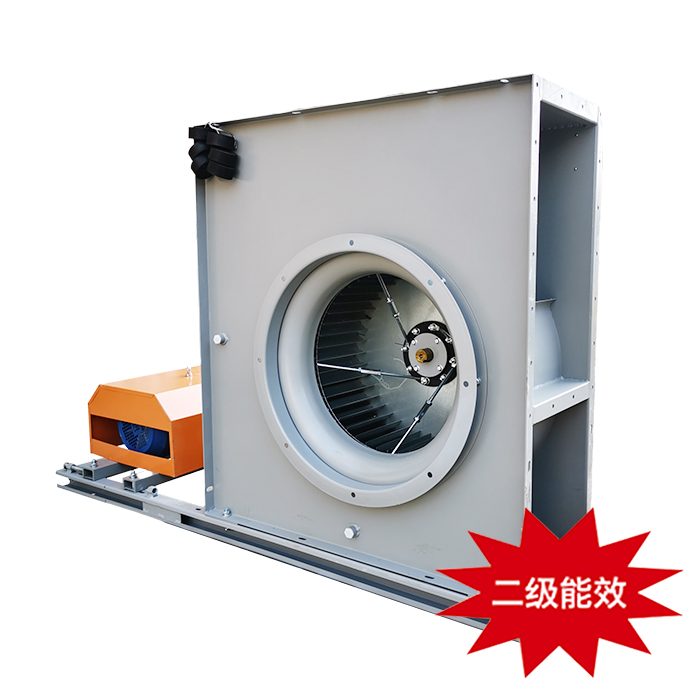

EF-A fume purification dedicated centrifugal fan

Structural features: square shell design, can achieve the angle of interchangeable, high static pressure type front bend multi-wing impeller design, especially for large resistance to smoke system.
Machine range: NO.2.5-6.3 # Total 9 machine number.
Air volume range: 1785 ~ 26675 m3/h
Full pressure range: 267 ~ 1719 Pa
Suitable for use: Suitable for kitchen smoke and general indoor ventilation, as well as equipment.
Use of the environment: the transmission of air without corrosion, no spontaneous combustion, non-sticky material, the medium temperature is generally not more than 80 ℃, the media contained particles is not greater than 150mg/m3. (Can be customized custom explosion-proof, anti-corrosion structure)
