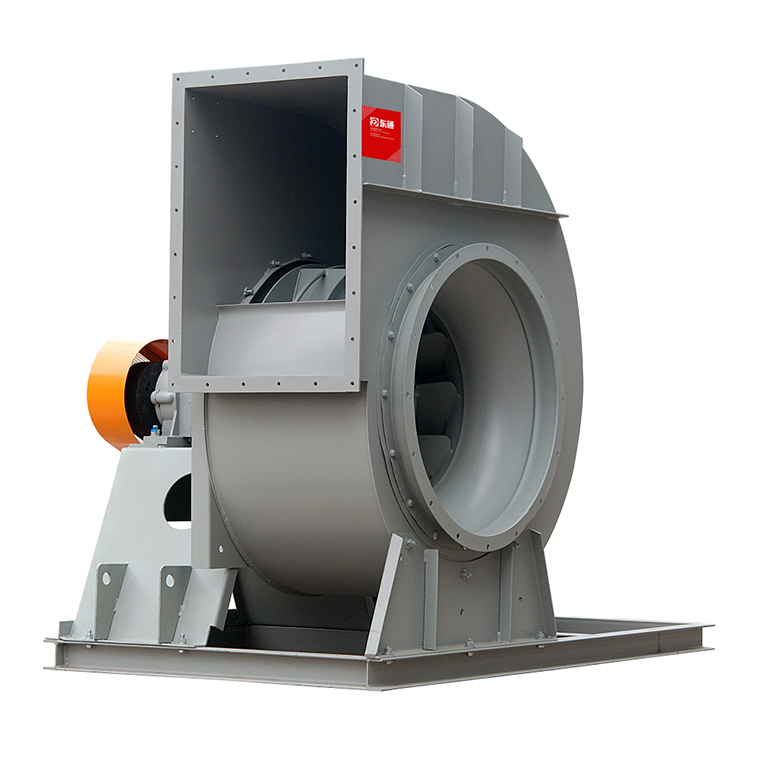

TDF-C/D series back tilt centrifugal fan

Structural features:Single inlet air, rear curved impeller, high efficiency and static pressure, disassembly structure, various angles interchangeable, transmission mode of two kinds of C/D structure .

Machine range: NO.280-2000 a total of 18 kinds of machine number.

Air volume range: 500-250000 m3/h

Full pressure range: 300-4000 pa

Suitable for use: Widely used in industrial and mining enterprises, metallurgy, petrochemical, environmental protection, nuclear power, waste incineration, coating and other places of ventilation and ventilation .

Use of the environment:  When the medium of ventilation is air, the maximum temperature is not more than 80 ℃ and the maximum temperature of the medium for the air diversion is not more than 200 .(Beyond the need for special design ) (Special custom made explosion-proof, anticorrosion, high temperature resistant structure)
