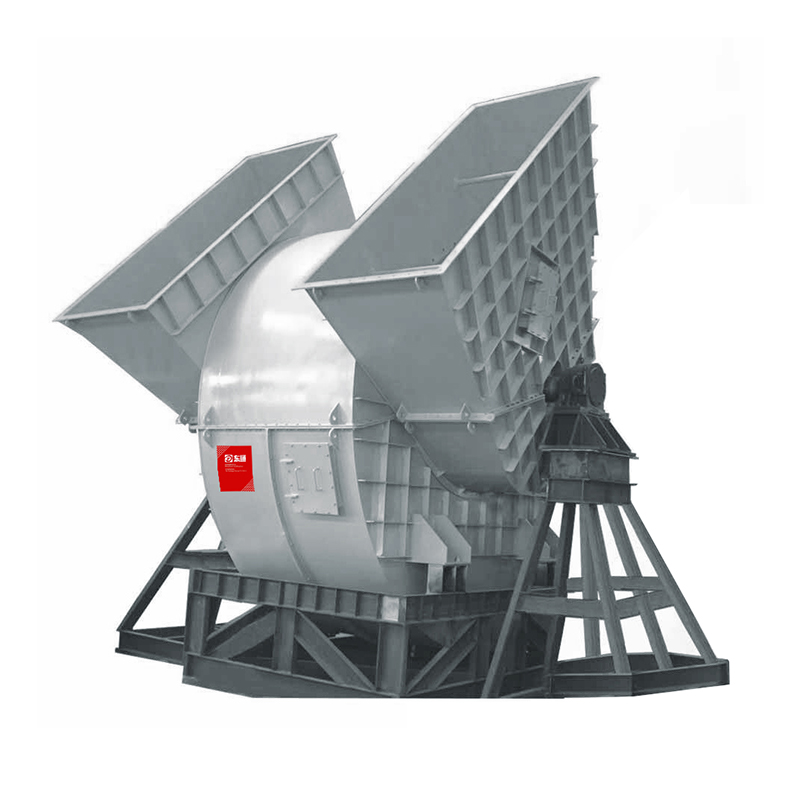

Structural features : The intake mode is divided into two forms of single suction intake and double suction intake. The transmission mode has two kinds of D type and F type.

Machine range : NO.1000-21000 a total of 39 kinds of machine number.

Air volume range : 1000-21666 m3/min

Full pressure range : entrance pressure: 67~ 99 KPa ,outlet pressure :81 ~ 111 KPa

Suitable for use :  It is mainly used as the main draught fan for the sintering production line of the smelting industry, and can also be used in other delivery and exhaust sites suitable for pneumatic parameters.

Use of the environment : The medium can not be spontaneous combustion, non-toxic, non corrosive gas, its temperature can not exceed 250℃.
